Y-Strainer valve flange end
Over 20 years of manufacturing experience
Shandong Lede Machinery Co., Ltd. was established in 2003, specializes in new pipe fittings, pipes, valves and other products in the design, development, production and sales, is currently the pipe in a trench industry ranked in the forefront of manufacturers and service providers.
Exellent quality casting products
Currently LEDE trench production of ductile iron pipe fittings, self-sealing valve, special pipes and other products, widely used in construction with fire sprinkler systems and water supply and drainage system and multi-purpose pipeline system.
Improve the process control system
LEDE has managed more than a decade to implement standardized management, we have achieved a perfect LEDE`s process control system, work fine, processes, and scientific. Supervision and rationalization of personnel relay.
Continuing operations, to meet customer needs
LEDE adhere to the people-oriented, the core concept of continuous improvement. In future LEDE will strive to create excellent and efficient operation management team, harmonious and friendly logistical support team and friendly marketing services team for meet different customer needs

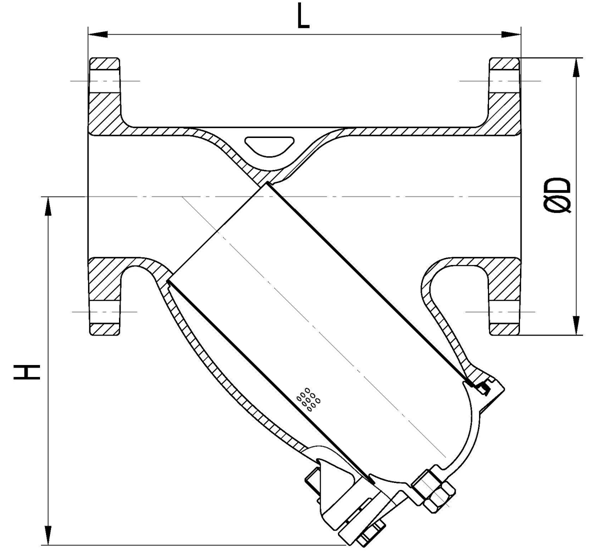

Y-STRAINER VALVE FLANGE END
The main performance parameters
Nominal diameter DN
|Nominal pressure PN||2.5 Mpa|
|Test pressure||Seal test||5.0 Mpa|
|Strength test||10.0 Mpa|
Main parts and materials:
|3||Screw nut||Carbon steel|
Failure may occur, causes and troubleshooting
|Symptom||Causes may occur||Elimination|
|Filter distortion||Not properly installed||Use the correct installation method|
|Severe bump||Handle with care|
|Virological filter cover leaks||Gaskets||Replace the seals, fastening|
|The outer tube stop leaks||Seal damage||Replace the seals, fastening|
